Features

• Supports Bluetooth SPP and GAP
• Power Supply: 3.3V via VCC PIN


• No external software or host

• Supports the configuration changing of Local Device

• Support the configuration changing of remote device wirelessly

• Support the Repeater Functionality

• Supports the point to point and the point to multipoint

• RoHS Compliance

• Frequency Range: 2.4 ~ 2.4835 GHz ISM band
• Transmit Power: 100mW (20dBm)
• Receiver Sensitivity: better than - 85dBm
• Desing for Antenna
    - Chip Antenna (W5I-BF Type)
    - Using SMA Connecter (an External Antenna)

• Serial Interface
    - UART 3.3V TTL
• Operating Environment
    - temperature : -20℃ to 70℃
    - humidity : 85%

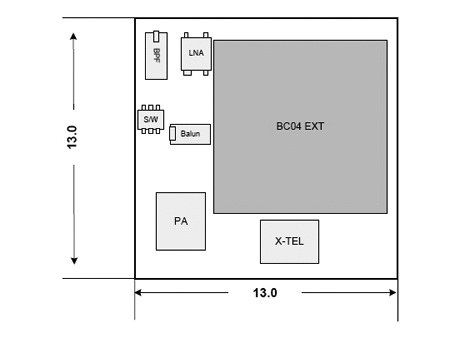

• DIMENSION
    - 13mm x 13mm x 1.6mm

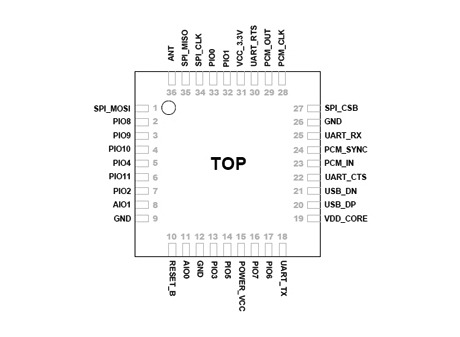

    - LGA 36 PIN

• Power Supply
    - Operation Voltage: DC 3.3V
    - Current Consumption: upto 100mA

• Key Hardware
    - BC04-Ext/8Mbits Flash/26MHz XTAL
    - UART, PIO & SPI


• Standard: at least Bluetooth Spec Ver. 2.1
