Products of HandyPort
The products of HandyPort are consist of a commercial serial port adaper, internal seral modual and embedded serial module.

Commercial Serial Port Adapter

HPS-120

Descriptions

External Serial Adapter

Order Number: HPS-120
  • Interface: DSUB-9 PIN Female / RS-232
  • Power Supply: 5 ~ 12V via PIN #9 or DC Jack
  • Required Software: None
  • Antenna: External SMA Female
  • Coverage: 100 ~ 1,000 (M)
  • Dimension (mm): 65 x 35 x 16 (mm)

  • Type Approval: KC/CE/FCC

  • Accessory: USB Power Code

  • RoHS: Compliance

  • Basic Package: HPS-120 2EA/Antenna 2EA/Power Code 1EA

Internal Serial Module

HPS-110

Descriptions

Internal Serial Module

Order Number: HPS-110
  • Interface: Molex-4 PIN Male / RS-232
  • Power Supply: 3.3 ~ 16V via Power PIN
  • Required Software: None
  • Antenna: External SMA Female
  • Coverage: 100 ~ 1,000 (M)
  • Dimension (mm): 58 x 33 x 11 (mm)

  • Type Approval: KC/CE/FCC

  • Accessory: Enclosure

  • RoHS: Compliance

  • Basic Package: HPS-110 2EA/Antenna 2EA
Embedded Serial Module
HBG1X3N

Descriptions

Embedded Serial Module

Order Number: HBG1X3N
  • Interface: LPA 36 PIN TTL
  • Power Supply: 3.3V via PIN #15 and 31
  • Required Software: None
  • Antenna: Chip / External Antenna
  • Coverage: 100 ~ 1,000 (M)
  • Dimension (mm): 13 x 13x 1.6 (mm)

  • Type Approval: Not Applicable

  • Accessory: Antenna / Shield CAN

  • RoHS: Compliance

  • Basic Package: HBG1X3N 1EA/Antenna 1EA/Shield CAN 1EA

Introduction of HandyPort

HandyWave's ready-to-use short range wireless connectivity solution, the HandyPort provides the most economic and powerful way of cable replacement solutions for the serial (RS-232, RS-422, and RS-485) communication systems.

Features

  • Supports Bluetooth SPP and GAP
  • Power Supply: 5 ~ 12V via Connector or DC Jack

  • No external software or host

  • Esay Installation and Usage

  • Supports the configuration changing of Local Device

  • Support the configuration changing of remote device wirelessly

  • Type Approval: KC/CE/FCC

  • Support the Repeater Functionality

  • 100M service coverage(nominal)

  • Supports the point to point and the point to multipoint

  • RoHS Compliance

Specifications
  • Frequency Range: 2.4 ~ 2.4835 GHz ISM band
  • Transmit Power: 100mW (20dBm)
  • Receiver Sensitivity: better than - 80dBm
  • Antenna:
      - external swivel type(standard)
      - directional type(custom)
  • Serial Interface
      - RS-232 Level or TTL (optional 3.3V)
      - Molex 22-70-7045
      - D_SUB 9 PIN FEMALE
      - Baud Rate: 1.2 ~ 115.2 Kbps
  • Operating Environment
      - temperature : -20℃ to 70℃
      - humidity : 85%

  • Type Approval: KC/CE/FCC

  • Power Supply
      - Operation Voltage: DC 3.3 ~ 16V or DC 5 ~ 12V
      - Current Consumption: upto 200mA @5V

  • RoHS Compliance

  • LED Indication
      - Operation/Power: ON or OFF
      - RF Link State: ON or OFF (blinking or off)

  • Standard: at least Bluetooth Spec Ver. 2.1

Overview

HandyPort, one of the short range wireless solutions of HandyWave, helps you to eliminate the communication cables between the controller(server) and peripheral equipments(client) which are configured using the RS-232 point to point or RS-422/485 point to multi-point serial communication standard.

HandyPort provides the service coverage of up to 200 meters in open sight and the communication speed of up to 115.2 Kbps. If you adopt a directional antenna to this application, you can expand the service coverage up to 500 meters and you can also eliminate the RS-232 to RS-422/485 converter by using the point to multi-point communication functionality of HandyPort.

HandyPort supports the point to point as well as the point to multi-point communication. Especially HandyPort supposts upto 260 nodes using TreeNet which is the point to multi-point technology of HandyPort..
Product Combination

  • Point-to-Point Connection
      - Connection between a HandyPort and a HandyPort
      - Distance extended: Connection among a HandyPort - HandyPort (Repeater) - ... - HandyPort

  • Point to Multipoint Connection
      - Device to Device: a Connection between a HandyPort Server and HandyPort Clients using the TreeNet
Benefits

  • You are to be free from cable installation and maintenance.

  • You can enjoy the mobility of the appliances.
  • You can keep the beauty of sight from being disrupted.

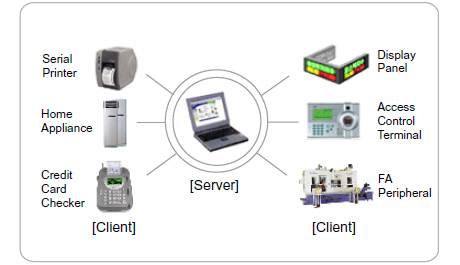

Application Areas

  • Electronic display system
      - between LED display panel and controller
      - between LCD display panel and controller

  • Security & identification system
      - between access control terminal and server
      - between in/out check terminal and server

  • POS(Point Of Sale) system
      - between POS client and server
      - between controller and peripherals
        (e.g. printer, scanner, credit card checker)
      - department store, discount store, oil station

  • Monitoring System for the Cellular Base Stations and Repeater

  • Telemetry system
      - between telemetry terminal and data collector
      - electricity, gas, water supply system

  • Automation system
    - between home appliances and server
    - between factory facilities and controller
